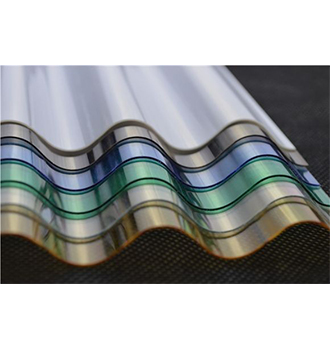

Polycarbonate Sheet

Polycarbonate Sheet widest ranges of clear flat PC roof panels, glazing and sign & display solutions compact PC Sheet are on excellent diferantive to glass for a widerange of uses as they are 200 times stronge and less weight compare to the glass. PC sheet offer the highest resrtance to impect and nail damage and high concentration of cell provides improved mechanical properties and rigidity.

Polycarbonate is a polymer with a unique blend of desirable properties. This polymer can be given shape by different processes, which include injection moulding, blow moulding, extrusion -and thermoforming.

We offers a unique combination of material properties that makes it superior to other thermoplastic material or glass, making it the ideal product for roofing, glazing and fabrication.

Polycarbonate Sheets are co-extruded with high-density ultraviolet rays in order to provide excellent resistance to colour and surface degradation. They offer a combination of properties such as high transparency, high impact and fracture resistance, high heat resistance, good dimensional stability and good electrical insulation property.

Features

Extreme Impact Strength
High Transparency
Easy Installation
Sound Insulation
Weather and UV-resistance
Virtually Unbreakable
Low Moisture Absorption
Easily machined, fabricated and thermoformed
Half the weight of glass
Eco-friendly material

Related Industries

Building & Constructions
Printing & Fabrication
Thermoforming & Machining
Defence & Security Glazing
Aerospace & Rail
Signage & Advertising
Mass Transportation & Automotive
Lighting

Colors

Green
Blue
Grey
Smoke

Dimensions

Width upto 2100mm
Thickness - 1mm to 10mm

Type

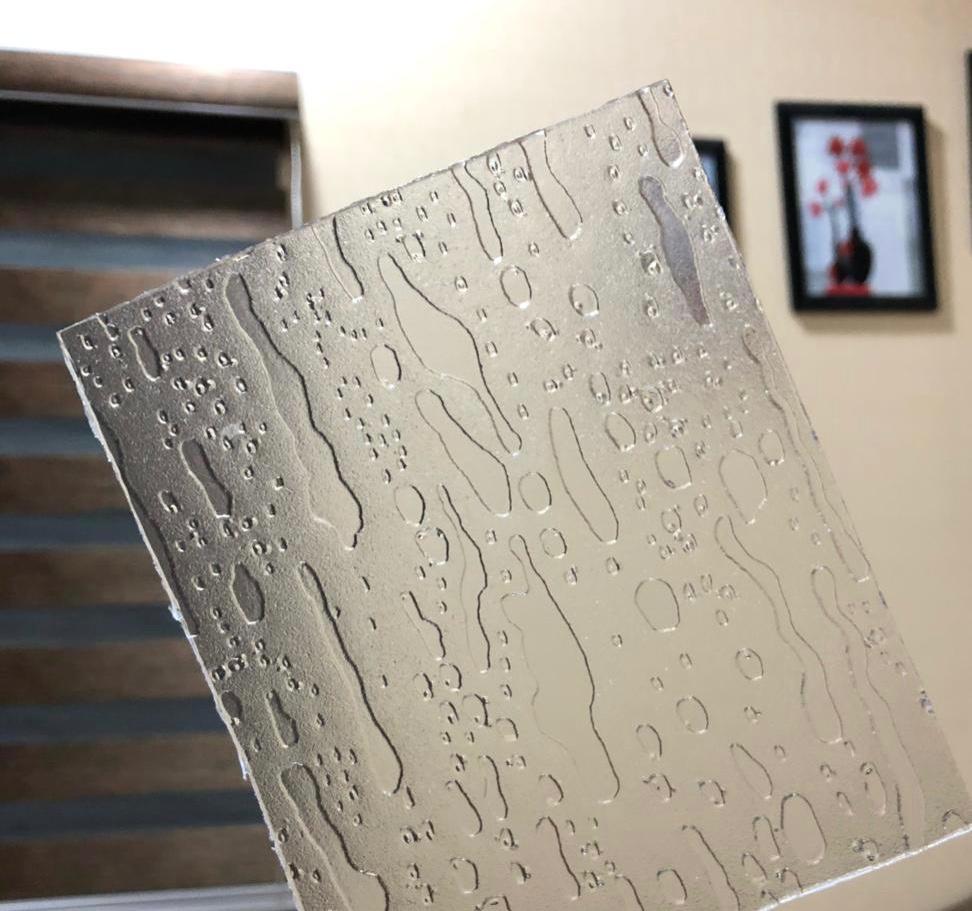

Options - Embossed texture, single sided UV protection and both sided UV protection
Specials - Special transparent, translucent & opaque options are available on request

GENERAL
General Properties	Method	Units	Value
Density	ISO 1183	g/cm³	1.2
Light Transmission	ASTM D1003	%	81-90
Reflective index	ISO 489		1585

MECHANICAL
General Properties	Method	Units	Value
Tensile Strength at yield	ISO 527-2	MPa	60
Tensile Modulus	ISO 527-2	MPa	2300
Elongation at break	ISO 527-2	%	>100
Elongation at yield		%	6
Flexural Modules	ISO 178	MPa	2330
Charpy Un-notched	ISO 179	KJ/m2	Not Break
Izod Impact notched	ISO 180a	KJ/m2	>65

THERMAL
Ceneral Properties	Method	Units	Value
Temp of deflection (HTD) Under load of 1.8 MPa	ISO 75-1	^.C	130
Vicat softening temp (50 ^.C/h 50N)	ISO 306	^.C	144
Thermal conductivity	DIN52612	W/m x^.C	0.2
Coefficient of liner thermal expansion 0-50^.C	ISO 11359	mm/(mx1^.C)	0.070
GWFI (Glow-wire Flammability index)	IEC60695-2	^.C	900

ELECTRICAL
General Properties	Method	Units	Value
Volume Resistivity	IES 60093	Ω x cm	3 x 10¹⁴
Surface Resistivity, dry	IEC 60093	Ω	6 x 10¹⁵
Dissipation Factor 1Mhz	IEC 60250		0.009
Dissipation Factor 100 Hz	IEC 60250		0.0006
