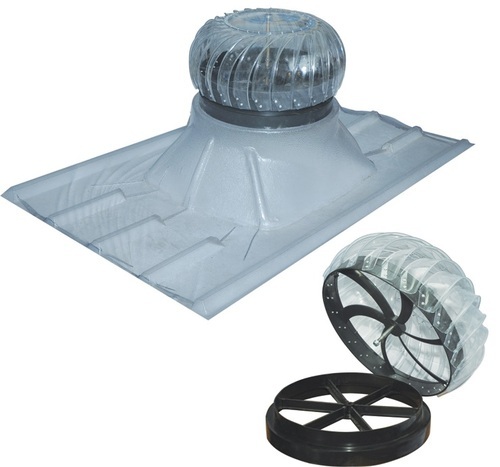

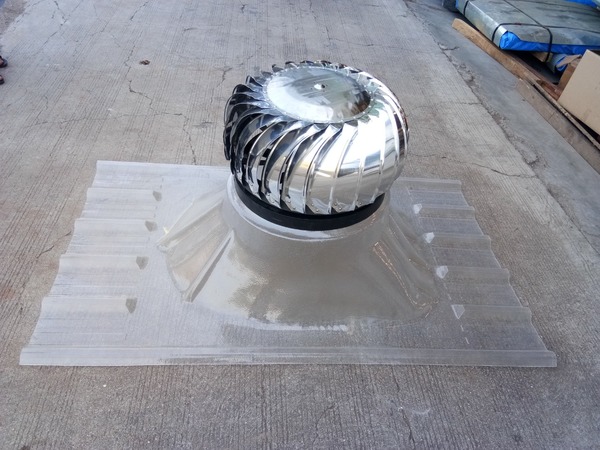

Turbine Roof Vent is not an old concept for Indian industry. It runs on wind power and there is no operating cost because to run Turbine Roof Vent no electricity is required. Its economical and ecological. It can be fitted on industrial sheeting. Turbo Roof Vent is manufactured in Western India by Jalaram Industries, Surat. Its construction is strong and light in weight.
Roof Vent was first introduced in Western part of India by Jalaram Industries. It became a grand success with the industries being electricity saver item. It works on air power and no electricity is consumed. Roof Vent does not make any noise while running as it moves on pivot. Slight breeze is enough to rotate the Roof Vent.
Surat is now known for Roof Turbine as it is made by Jalaram Industries. In Surat. Roof turbine is liked by all the industries where there is generation of bad fumes as it exhausts them without consuming power. Roof Turbine saves energy which in today's world is the costliest raw material. It is easy to instll and can be fitted to any type of roofing.
Vane Wind Ventilator can be fitted in the factories, warehouses, workshops, industrial shed etc to extract foul smell, smoke etc to provide comfortable working atmosphere. Vane Wind Ventilator is the brain child of Jalaram Industries, Surat. This company is manufacturing Vane Wind Ventilator for last 8/9 years and is the only company in Western Region manufacturing Vane Wind Ventilator. It can be configured to meet fresh air changes.
Wind Ventilator is the name of the mechanical equipment running on wind to provide fresh air in the industrial sheds without running cost. Wind Ventilator does not consume any power units and no power connection is required. Wind Ventilator is made by Jalaram Industries in Surat which is the only unit making Wind Ventilators in Western Part Of India. Wind Ventilator removes hot gases, obnoxious fumes and enhances ventilation.
Roof Turbine Ventilator is the name of the equipment which can be called Wind Ventilator or Turbine Ventilator also. It is fit and forget system and replaces exhaust Fan which consumes power. Roof Turbine Ventilator works on the principle of flywheel and ones it gets momentum it keeps on rotating.
Ventilation Makes Living Comfortable:
Ventilation is a perfect method to bring comfort in living by the simple method of replacing stale air with fresh and clean breeze. The highly efficient wind driven turbine ventilator is naturally powered by the wind and helps keeping the attic filled with fresh air.
Requirement:
Attic temperature depends on the amount of solar radiation and the rate of ventilation taking place. Temperature and moisture control are the major reasons for providing roof ventilation. Attic ventilation can be accomplished by turbine roof ventilation.
An effective turbo ventilator works on the principle of natural convection, that works to pull air into the attic from a low position commonly through vents.
Functioning of Turbine Air Ventilators:
The working of wind powered turbine ventilators is simple and for sure makes the air purified. Even the slightest breeze that touches the scientifically built ventilator blades, makes the turbine to rotate. This rotation gives rise to the centrifugal force which creates a vacuum inside the turbine. The partial vacuum is replaced by strong upward thwart of wind. This works for a perfect exhaust by wind driven ventilator.
| Available | 24 | 20 | 16 |
| Available Make | Aluminium / Stainless Steel | Aluminium / Stainless Steel | Aluminium / Stainless Steel |
| Available Base | Aluminium / FRP | Aluminium / FRP | Aluminium / FRP |
The wind influences the performance of the ventilator in two ways
| Type of Building | Air changes per Hour |
| Ware Houses | 3-5 |
| Factories and workshops | 3-8 |
| Assembly Halls | 6-12 |
| Garages | 6-12 |
| Toilets | 7-12 |
| Laundries | 7-15 |
| Poultry Houses | 7-25 |
| Heavy Factories | 20-40 |
| Type of building | Timme/Hour | Building | Time/Hour |
| Machinery | 4-15 | Textile | 3-7 |
| Forming | 10-30 | Dyeing | 10-40 |
| Foundry | 10-30 | Repairing | 10-20 |
| Electroplate | 12-20 | Washing | 10-30 |
| Drying | 10-20 | Boiler | 15-30 |
| Food | 3-8 | Lab | 6-15 |
| Wood | 3-8 | Pump | 5-10 |
| Paper | 8-15 |
| Building | Time/Hour | Building | Time/Hour |
| Library | 6-10 | Reception Room | 4-12 |
| Church | 6-10 | Toilet | 5-10 |
| Classroom | 3-8 | WC | 4-14 |
| Storehouse | 3-6 | Smoking Room | 5-15 |
| Car port | 4-10 | Restarunt | 6-12 |
| Sick Room | 2-4 | House Room | 5-10 |
| Kitchen | 7-15 | Office | 2-5 |
| Rest Room | 10 | Sterillized Room | 8-15 |
| Wind Speed (KM) | 3.2 | 6.4 | 8 | |||||||||
| Model | Turbine Dismeter (mm) | Total Diameter (mm) | Room Height (M) | the Ventilating cube per hour (M3) | ||||||||
| Temperature Difference | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | |||
| TG-600 | 720 | 600 | 3 | 1528 | 1716 | 1930 | 2076 | 2186 | 2314 | 2327 | 2510 | 2700 |
| 6 | 1712 | 1817 | 1986 | 2150 | 2360 | 2694 | 2766 | 2895 | 2895 | |||
| 9 | 1913 | 2160 | 2630 | 2659 | 3065 | 2956 | 3105 | 3348 | 3348 | |||
| 12 | 2065 | 2345 | 2700 | 2864 | 2925 | 3148 | 3188 | 3346 | 3468 | |||
| Wind Speed (KM) | 9.6 | 612.8 | 16 | |||||||||
| Model | Turbine Dismeter (mm) | Total Diameter (mm) | Room Height (M) | the Ventilating cube per hour (M3) | ||||||||
| Temperature Difference | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | |||
| TG-600 | 720 | 600 | 3 | 2720 | 2975 | 3070 | 3358 | 3565 | 3760 | 4033 | 4240 | 4357 |
| 6 | 2921 | 3158 | 3330 | 3547 | 3785 | 3961 | 4188 | 4430 | 4610 | |||
| 9 | 3150 | 3350 | 3535 | 3875 | 4161 | 4270 | 4518 | 4882 | 5050 | |||
| 12 | 3380 | 3786 | 3942 | 4215 | 4410 | 4656 | 4821 | 5125 | 5230 | |||
